Here at Kidderminster Roofing Supplies ltd, we stock Northstone Dunluce Roof Tiles in Matt Black, Granite Grey, Basalt Grey, Turf Brown, Brick Red and Antique Red.
The Dunluce is a thin leading edge interlocking tile with a mock joint which gives the appearance of European plain tile half its actual size when laid. The Dunluce small plain tile appearance give the economic benefits of product and labour savings without compromising on aesthetics.
CALL US FOR A FREE QUOTE ON ROOFING MATERIALS – 01562 748270

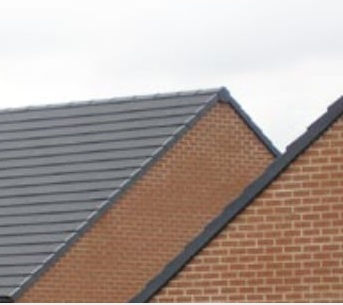

Northstone Dunluce Roof Tile
Colour
- Size of Tile: 420mm x 334mm
- Leading Edge Depth: 17mm approximately
- Pallet Size: 1000 x 1065mm
- Pallet Weight: 1140kg (approximately)
- Tiles Per Pallet: 240 tiles
- Minimum Pitch: 17.5 Degrees (100mm headlap) – 25 Degrees (75mm headlap)
- Maximum Pitch: 54 Degrees (without special fixing)
- Minimum Headlap: 75mm
- Maximum Gauge: 345mm
- Hanging Length: 400mm
- Nominal Cover Width: 311mm (approximately)
- Tile Weight: 4.65kg (approximately)
- Nail Hole Diameter: 5-8mm
- Nail Hole Position: 38mm from top tile
- Weight of Tiling (approx.): 44kg/m2 at 75mm headlap, 47kg/m2 at 100mm headlap
- Covering Capacity per m2: 9.8 tiles at 75mm headlap, 10.2 tiles at 100mm headlap
- Batterns Required per m2: 2.95m at 75mm headlap, 3.1m at 100mm headlap
- Battern Size: 50mm x 25mm for rafters not exceeding 600mm centres
- Tile Nails: 45mm x 3.35mm ring shanked aluminium clout nails
- Tile Clips: Tile, Verge and Eave Clips
- Eave: Standard Tile Single Lap
- Verg Dry Fix: Northstone TLE Dry Verge System
- Ridge Dry Fix: Universal Angle Ridge 455mm long fixed with Northstone Dry Ridge system
- Hip Dry Fix: Universal Hip Angle Ridge 455mm long fixed with Northstone Dry Hip System
